15'' round seoul smd high bay light 2835 cuircuit mcpcb pcb led module with optical diffuser led lens
Item No.:NKT-15-40-208-L
15'' round seoul smd high bay light 2835 cuircuit mcpcb pcb led module with optical diffuser led lens
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-15-40-208 Product name: pcb led with lense
Shape: Round LED Type: Seoul 2835
Voltage: Max 39v Color: White
LED Chip: Seoul & Samsung Input Current: Max 2400mA
Diameter: 393mm PCB Material: Aluminum, CEM-3
LED QTY: 208pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 93.6W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: High bay

Product Dimension:

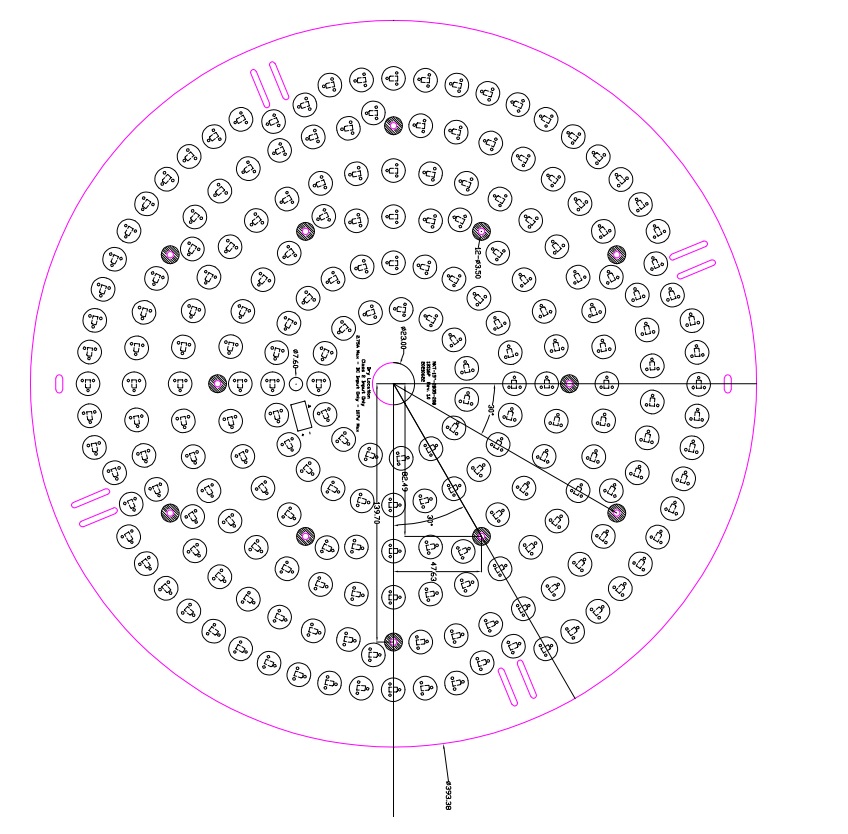

2835 cuircuit mcpcb pcb led module with optical diffuser led lens PCB layout

Product packaging:
2835 cuircuit mcpcb pcb led module with optical diffuser led lens packaging

Product Applications:

2835 cuircuit mcpcb pcb led module with optical diffuser led lens application
