26-28.5V Mini 5.5'' hard led strip DC led source module samsung smd 2835 small modules led
Item No.:NKT-5.5-XX-10-2
26-28.5V Mini 5.5'' hard led strip DC led source module samsung smd 2835 small modules led
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-11-XX-20-2 Product name: modules led
Shape: Linear LED Types: 2835 SMD LED
Voltage: Max 28.5V Color: White
LED Chip: Seoul & Samsung Input Current: Max 150mA
Dimension: 139.7*15.24*1.6mm PCB Material: Aluminum, CEM-3
LED QTY: 10pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 4.425W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

Product Dimension:
modules led, single  dc12v samsung led modules

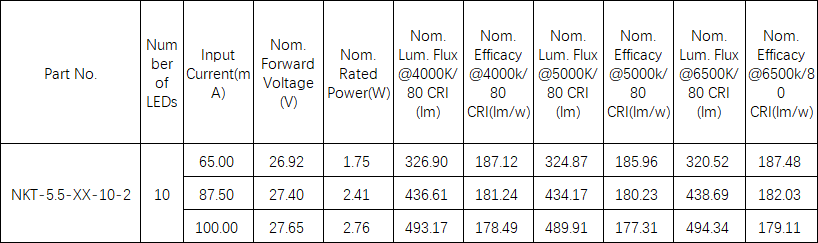

Technical Parameters:
led modules 5054, dc 12v led modules, 2811 led modules


Product packaging:
led modules, led modules smd, 2835 led modules mini ,red led modules

Product Applications:

small led modules, led modules 5630, led source module, hard led strip

What can we do for you? Email us and let me know what you need!
