58'' 37-40V LED module 3030 mounted PCB hard strip rigid industries led bar rigid led strip for Indoor Retrofit

Item No.:NKT-58-XX-196-3

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-58-XX-196-2	Product name:	Rigid led strip
Shape:	Linear	LED Type:	led hard strip
Voltage:	Max 40v	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 2100mA
Dimension:	1473.2201.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	196pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 86.73W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

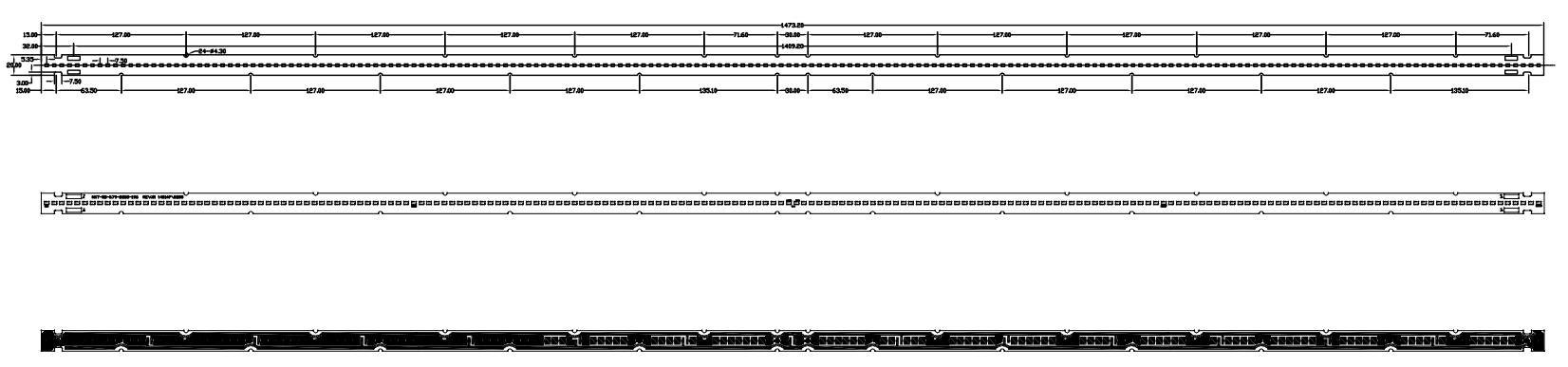

Product Dimension:
led hard strip, led hard strip lights, led strip hard

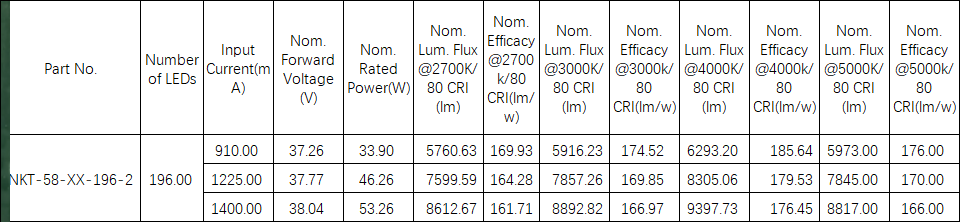

Technical Parameters:
hard led bar, rigid led bar, rigid led strip, led rigid bar

Product packaging:

Product Applications:
rigid led lights, led rigid light bar, led module 3030
