CE RoHS ETL SMD 2835 44'' led_module_korea led lamp module samsung linear cheap led module

Item No.:NKT-44-XX-168-4

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Samsung LED Module
Item#	NKT-44-XX-168-2	Product name:	Samsung led module
Shape:	Linear	LED Types:	2835 SMD
Voltage:	Max 42V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 1800mA
Dimension:	1117.6201.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	168pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 74.34W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

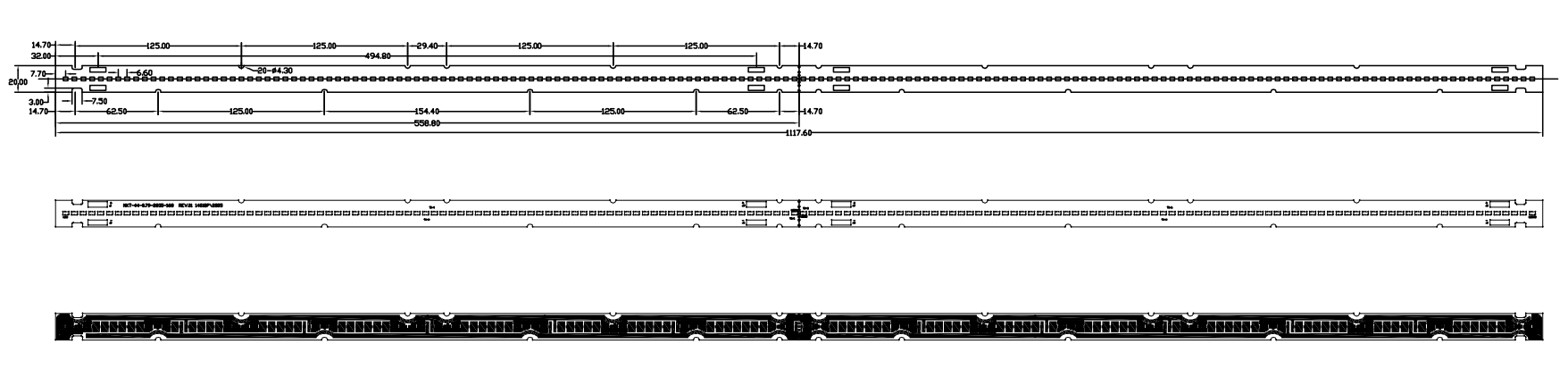

Product Dimension:

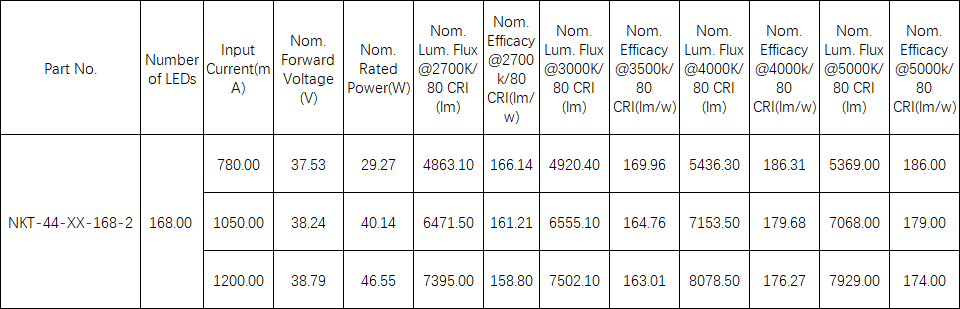

Technical Parameters:

Product packaging:

Product Applications:
led linear module, cheap led module
