China custom super 22'' 36-40V 2835 led 94v 0 circuit board aluminum linear led module led light module
Item No.:NKT-22-XX-42-2
China custom super 22'' 36-40V 2835 led 94v 0 circuit board aluminum linear led module led light module
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-22-XX-42-2 Product name: LED light module
Shape: Linear LED Type: 2835 led strip
Voltage: Max 40v Color: White
LED Chip: Seoul & Samsung Input Current: Max 450mA
Dimension: 558.8*20*1.6mm PCB Material: Aluminum, CEM-3
LED QTY: 42pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 18.58W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

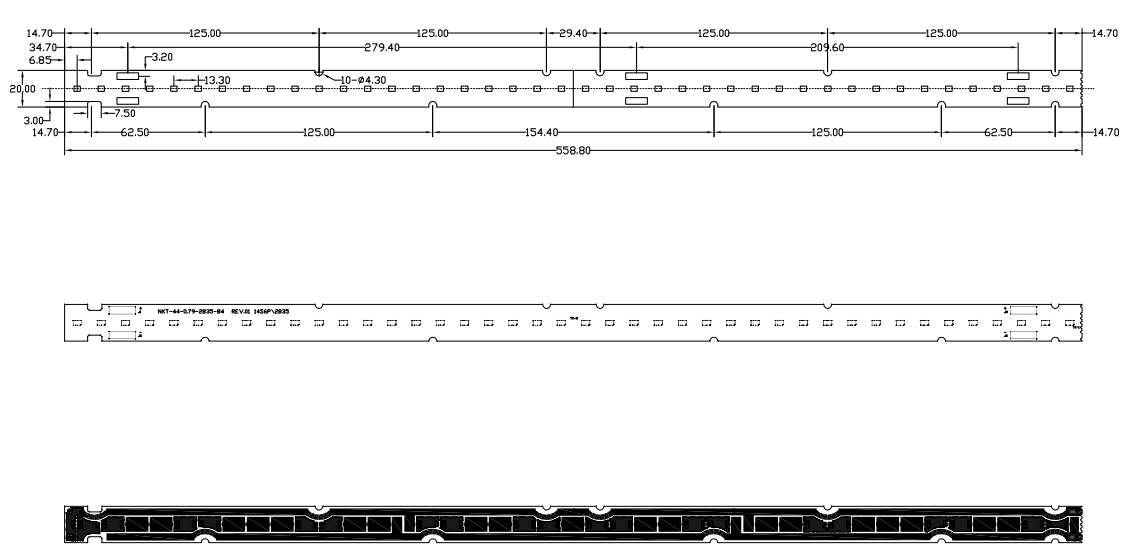

Product Dimension:
indoor led module, led light module, linear led module

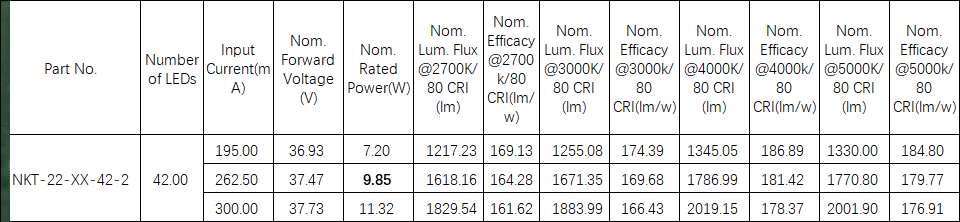

Technical Parameters:
led linear module linear module led, led module light led panel module

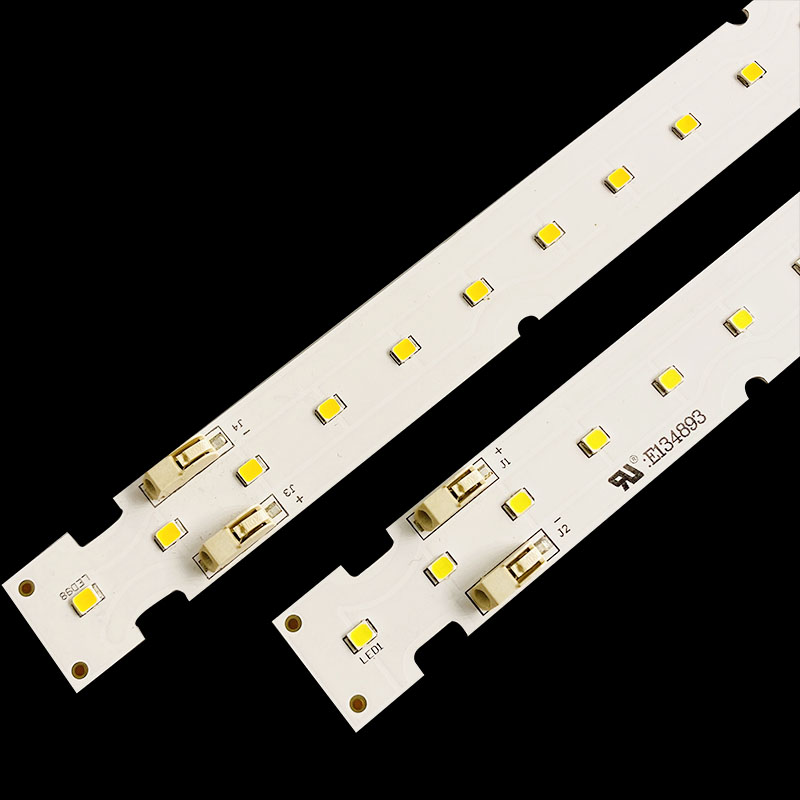

Product Picture:

led light circuit board,indoor led module, led light module, linear led module

Product packaging:
indoor led module, led light module, linear led module, led linear module

Product Applications:

linear module, led led module light, led panel module
