Custom 24volt dc 1000mm cuttable linear led bar 24V led module led rigid strip light

Item No.:NKT-39-40-132

Product description
- Ideal for linear and panel lights
- 24V dc led module
- Push terminals for quick and simple wiring
- Excellent thermal management
- Long lifetime up to 72,000 hours
- 5 years guarantee
- Optical properties
Linear Tunable White LED module with 2,700 and 6,500 K SMT packages
- Efficacy of the LED module 110 lm/W at 6,500 K, Irated and tp = 50 °C
- High colour rendering index CRI > 80
- Small colour tolerance (MacAdam 3) (1)
- Low tolerances for luminous flux

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Nominal voltage	24V	Energy consumption in on-mode	6.1 kWh/1000h
Nominal current	1500mA	On-mode power	34.64W
Product size	1000*20mm	Product weight	50g
Type of current	DC	Number of LEDS per module	132

Photometrical data:

Luminous efficacy	120lm/w	Colour consistency (McAdam ellipses)	3
Color rendering index Ra	>80	Correlated color temperature CCT	4000K
Useful luminous flux (Φuse)	4154m

Other information:

Warm-up time (60 %)	< 2.00 s	Starting time	< 0.1 s
Performance temp.	50 °C	Temperature range at storage	-30…85 °C
Temperature range in operation at Tc point	-20…75 °C	Ambient temperature range	-20…+75 °C
Maximum temperature at tc test point	75 °C	Number of switching cycles	100000
Lumen maintenance factor LMF	96	L70B50 lifetime	100000 h

Product Demension:

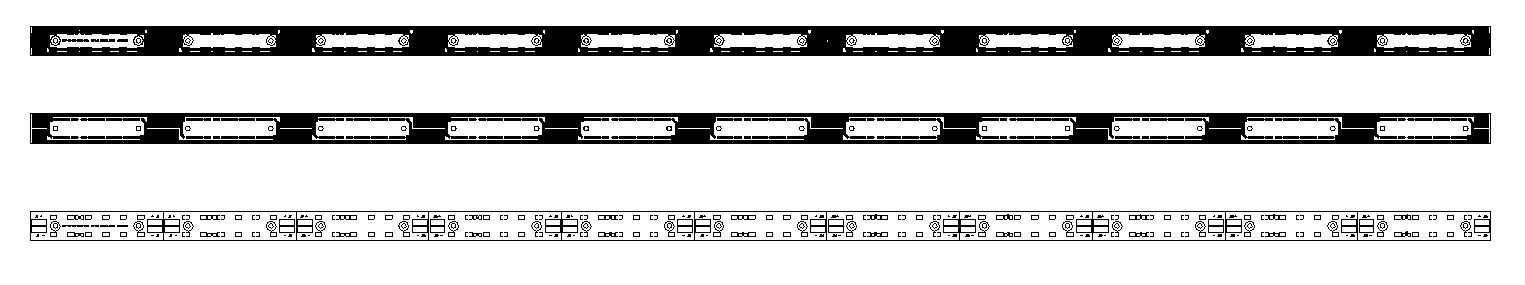

linear led bar 24V led module led rigid strip light PCB layout

Product Packaging:

Information about Family

High performance values for best-in-class luminaires:
These light engines offer a broad range of length and luminous flux as well as a wide CCT range from 2700 K
to 6500 K. Slim luminaire designs are possible by the small and flexible form factor and thanks to a small LED
pitch this product reaches high homogeneity. The PrevaLED Linear Optics will direct the light to where it’s needed.

More detailed pictures:

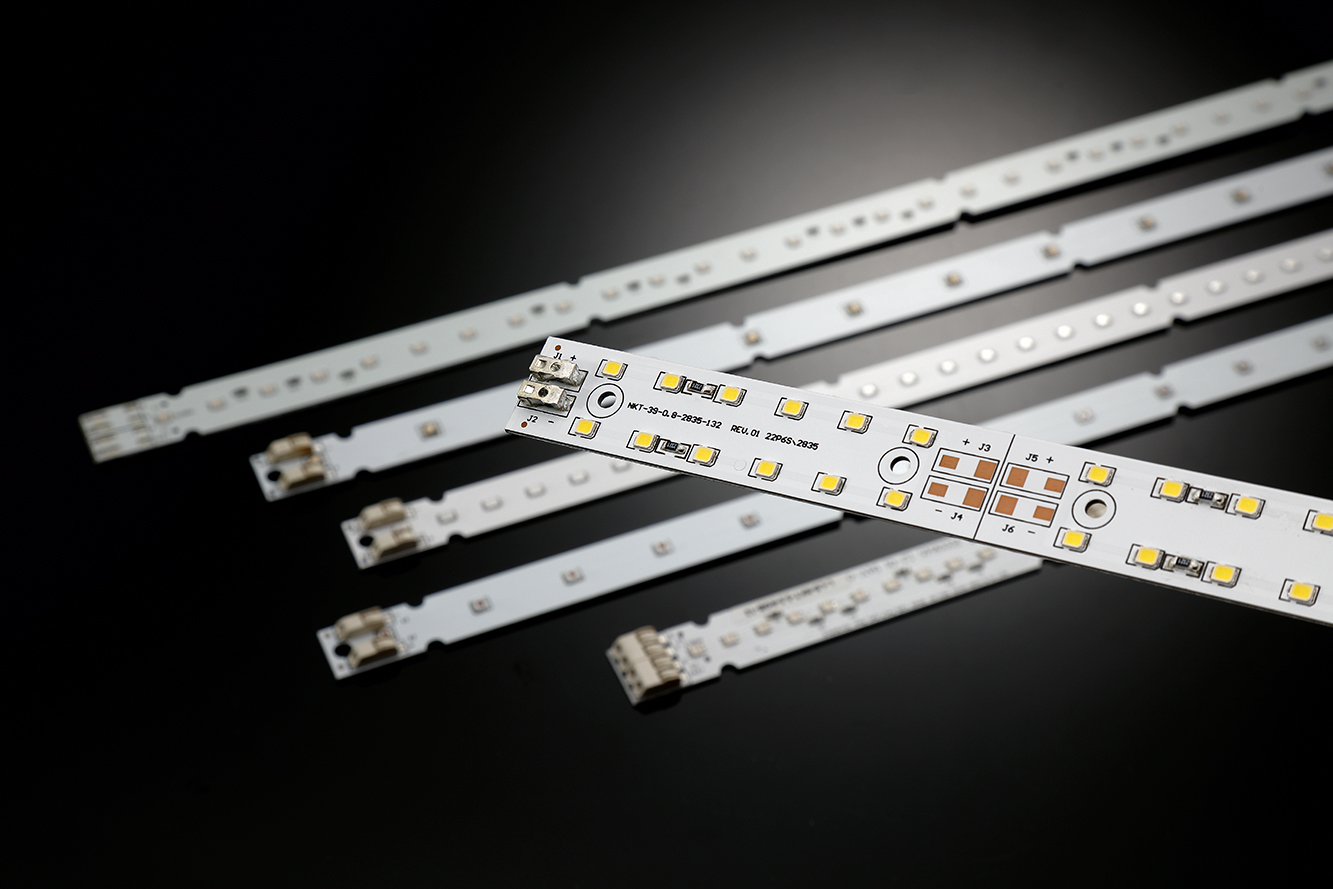

linear led bar 24V led module led rigid strip light family

linear led bar 24V led module led rigid strip light family

Product family features:

DC Module efficacy: up to 185 lm/W
Available with luminous flux: 500 lm on 5.5''(140 mm)
Available with luminous flux: 1000 lm on 11''( 280 mm)
Available with luminous flux: 2,000 lm, 4,000 lm on 19.5'' (500 mm)
Available with luminous flux: 4,000lm, 8000 lm on 44''(1,120 mm)
Available with luminous flux: 4500 lm, 9000lm on 58'' (1,500 mm)
Available with color temperature: 2700K, 3,000 K, 4,000 K or 6,500 K
High initial color consistency: ≤ 3 SDCM
Average lifetime (L80 B50): > 70,000 h (temperature at T_c = 50 °C)
CE marked, ENEC certified; UL listed
