Customized driverless DC indoor Korear samsung led pcb board aluminum led module round for ceiling lamp lighting

Item No.:NKT-6-XX-56-5

ROUND CUSTOMIZABLE LED MODULES

Available length:3'', 4'', 5'', 6’’, 8’’, 10’’ 12''
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
Applications: Hotel, Parking lot, Office, Home etc.
Poke in connectors
Service life: 60000 hours
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-6-XX-56-2	Product name:	led module round
Shape:	Round	LED Type:	led pcb board aluminum
Voltage:	Max 21.7V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 1600mA
Dimension:	Diameter is 6''	PCB Material:	Aluminum
LED QTY:	56pcs	Luminous Efficacy:	185lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 34.7W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Ceiling lamp lighting

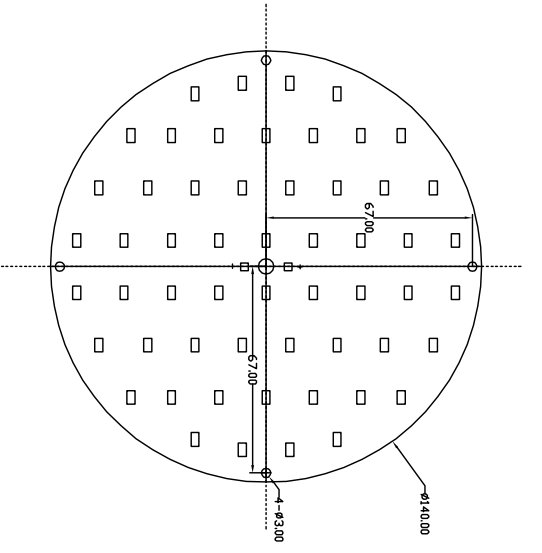

Product Dimension:
led module round, samsung led module korea

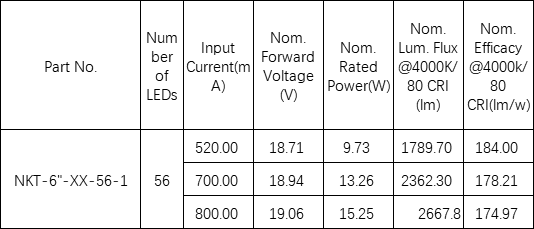

Technical Parameters:
led pcb board aluminum, korea samsung led module

Product Applications:
led pcb board aluminum, korea samsung led module
