Different sizes parallel or Series dimmer bulb light led circuit diagram aluminium pcb board for led

Item No.:NKT-44-40-160

Product Advantages:
-Can be snapped in the middle, save the stock and shipping fees.
-Poke in connectors for easy assembly
-2700K, 3000K, 3500K, 4000K, 5000K and 6500K are available
-Mouse bite design for easy assembly
-High reflective PCB paint improves high efficacy

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Nominal voltage	27-30V	70.8 Wattage	Max W
Current	Max 2400mA	Product thickness	1.6mm
Product size	1117.615.241.6mm	Product weight	50g
Type of current	DC	Number of LEDS per module	160

Photometrical data:

Luminous efficacy	185lm/w	Consistent white light	< 3 SDCM
Color rendering index Ra	>80	Available olor temperature CCT	2700K, 3000K,3500K,4000K, 5000K, 6500K
Useful luminous flux (Φuse)	6000lm	Dimmable	No

Other information:

PCB Material	Aluminum or CEM-3	LED Brands	Seoul or Samsung
Performance temp.	50 °C	Temperature range at storage	-30~85 °C
Temperature range in operation at Tc point	-20~75 °C	Ambient temperature range	-2~+75 °C
Maximum temperature at tc test point	75 °C	Number of switching cycles	100000
Certifications	CE, RoHS, ETL	Guarantee	5Years

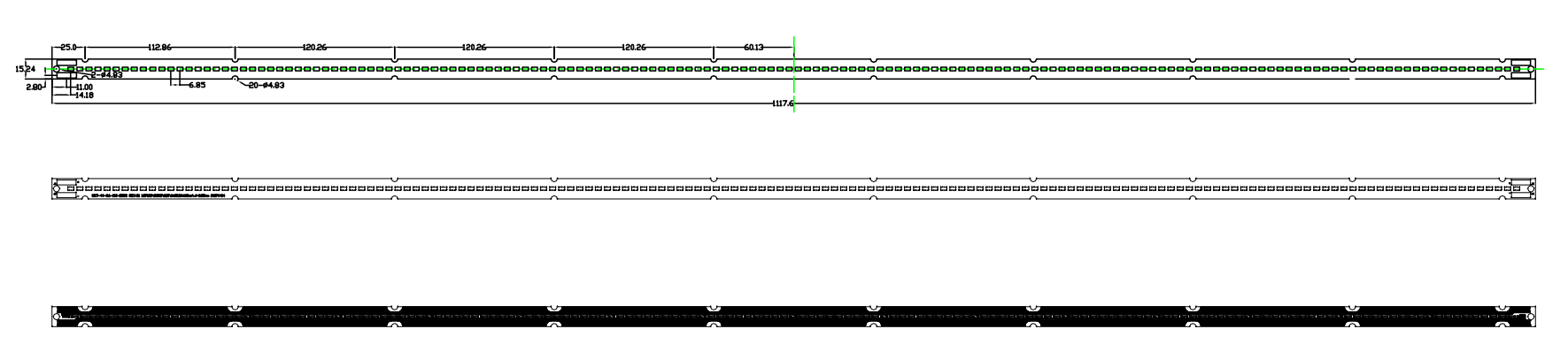

Product Demension:
aluminium pcb board for led size, led circuit diagram, parallel led circuit demension

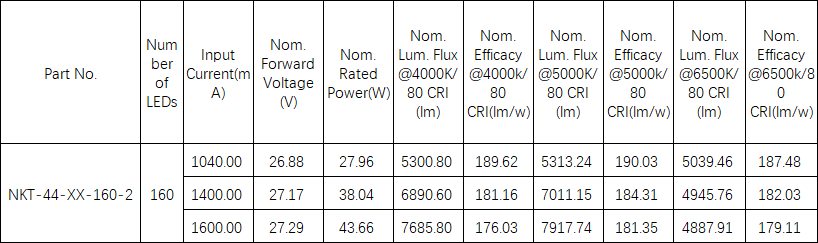

Technical Parameters:
aluminium pcb board for led test, led circuit diagram test, parallel led circuit test

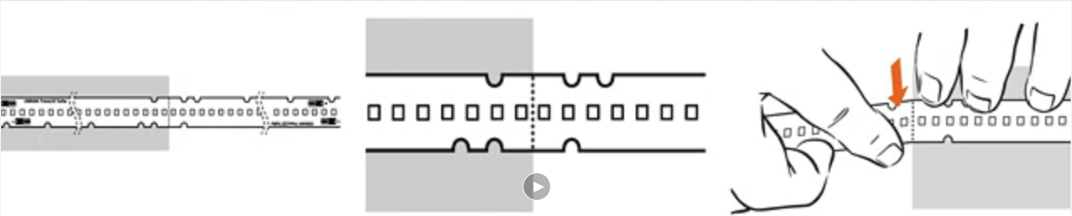

Snapping Instrucitons:
The led pcba can be snapped mide-way to fit a application fixture.
Please use the best practices shown below when handing the led PCBAS:
1) Find a solid and clean surface(working table, bench, tool box cover) suitable to support the led cuircuit board.
2)Align the perforated line(mouse bites) found in the center of the PCB against the edge of a supported surface.
3) Press the overhanging section of the pcb led down as close as possible to the perforated line to snap.
aluminium pcb board for led cuttable, led circuit diagram snapp off, parallel led circuit snap off

aluminium pcb board for led cuttable, led circuit diagram snapp off, parallel led circuit snap off

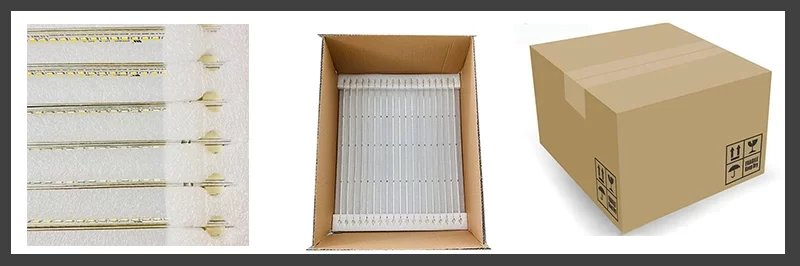

Product Packaging:
aluminium pcb board for led package, led circuit diagram package, parallel led circuit package

More prouct pictures:

aluminium pcb board for led, led circuit diagram, parallel led circuit

Installation & Assembly Guidelines:
Mounting:
• Led modules may be installed using the provided mounting slots/holes.
• Nylon washers should be used on the top side to prevent the screw-head from making electrical contact with traces.
• The led modules may also be mounted using thermal transfer adhesive.
• LEDs should not be touched or contacted during installation to avoid damage
Wire Connector
• Wire connectors will accept 18 to 24 AWG solid or bonded stranded wire.
• To remove wire from connector, depress the indent on the top of the terminal with a wire release tool, and pull the wire.
Electrostatic Sensitive Product
• Installation of Universal Douglas LED Modules should be in an environment that incorporates ESD protective measures.
• Technicians should be grounded and avoid contact with the LEDs when servicing LED Luminaires.

Product family features:

Module efficacy: up to 185 lm/W
Available with luminous flux: 500 lm on 5.5''(140 mm)
Available with luminous flux: 1000 lm on 11''( 280 mm)
Available with luminous flux: 2,000 lm, 4,000 lm on 19.5'' (500 mm)
Available with luminous flux: 4,000lm, 8000 lm on 44''(1,120 mm)
Available with luminous flux: 4500 lm, 9000lm on 58'' (1,500 mm)
Available with color temperature: 2700K, 3,000 K, 4,000 K or 6,500 K
High initial color consistency: ≤ 3 SDCM
Average lifetime (L80 B50): > 70,000 h (temperature at T_c = 50 °C)
CE marked, ENEC certified; UL listed
