DIY alibaba 26- 28V 5.5'' 11'' 19.5'' 44''  LED sign module lamp rigid aluminum light strip bar LED hard light bar home
Item No.:NKT-10
DIY alibaba 26- 28V 5.5'' 11'' 19.5'' 44'' LED sign module lamp rigid aluminum light strip bar LED hard light bar home
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-10 Product name: led rigid light bar
Shape: Linear LED Types: 2835 SMD LED
Voltage: Max 28.5V Color: White
LED Chip: Seoul & Samsung Input Current: Max 1200mA
Dimension: 5.5'', 11'', 19.5'', 22'', 44'' PCB Material: Aluminum, CEM-3
LED QTY: 40pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 34.4W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

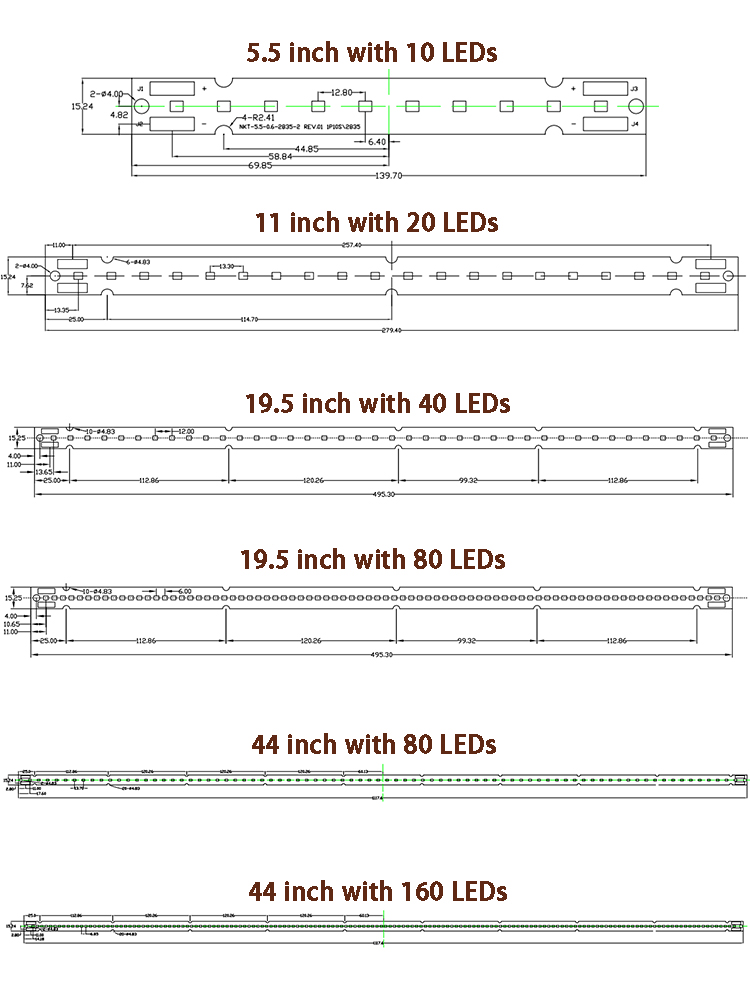

Product Dimension:
led aluminum light bar, led rigid light bar, led strip bar light

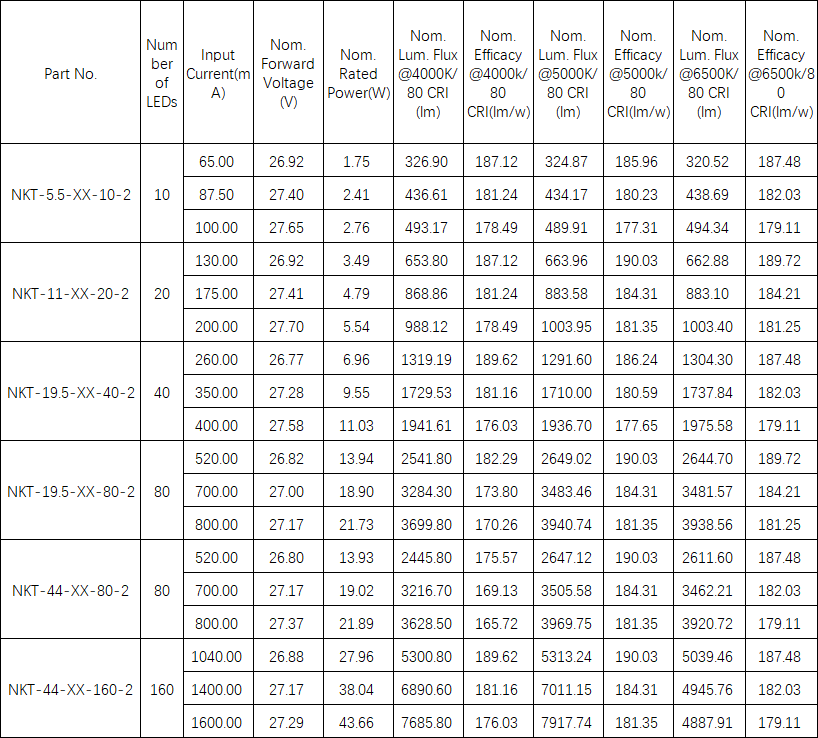

Technical Parameters:
rigid led light bar, led light strip, bar aluminum diy


Product packaging:
led light bar housing

Product Applications:

alibaba led module, led module lamp, led sign module
