Energy-efficient lighting SMD 60 led per meter 2835 cct 60d led strip light 2835 led strip for linear ShoeBox LED Light
Item No.:NKT-11-XX-56-2
Energy-efficient lighting SMD 60 led per meter 2835 cct 60d led strip light 2835 led strip for linear ShoeBox LED Light
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-11-XX-56-2 Product name: 2835 LED strip
Shape: Linear LED Type: 2835 led module
Voltage: Max 40v Color: White
LED Chip: Seoul & Samsung Input Current: Max 600mA
Dimension: 279.4*20*1.6mm PCB Material: Aluminum, CEM-3
LED QTY: 56pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 24.78W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

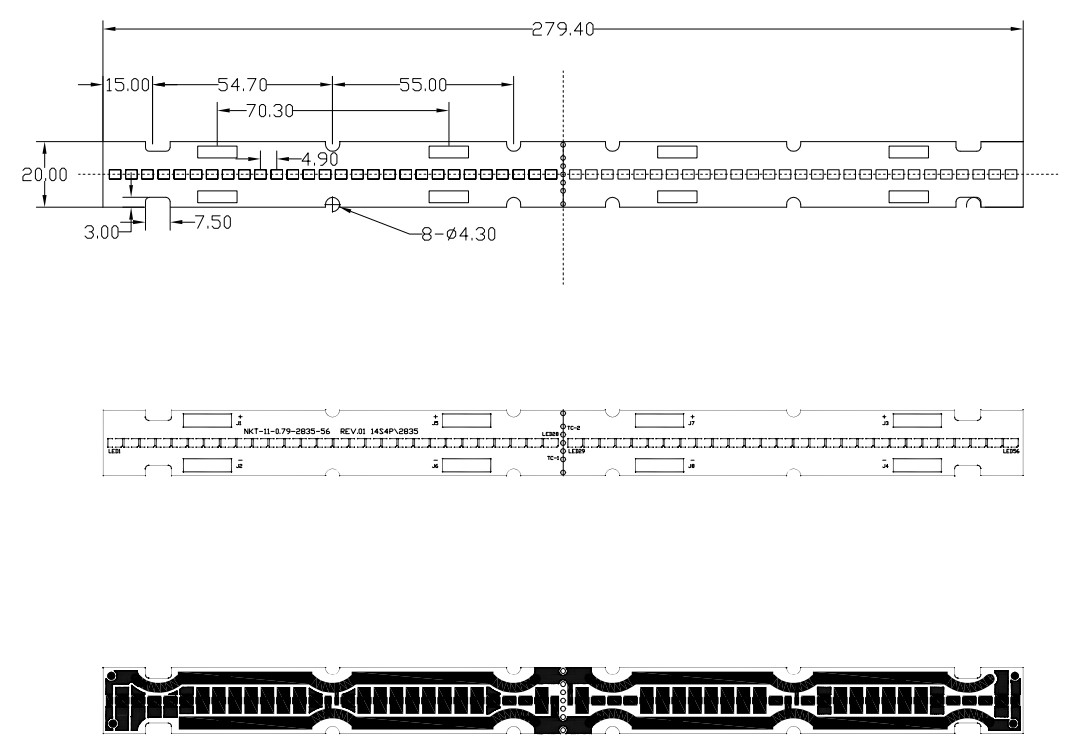

Product Dimension:

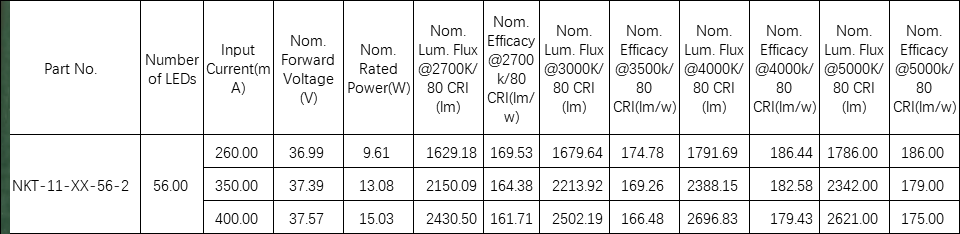

Technical Parameters:



Product packaging:


Product Applications:
