Home > 19.5'' led Module
ETL CE Rohs 19.5'' 2835 China led module board string lighting LED lamp module LED PCB board for LED grow light
Item No.:NKT-19.5-XX-40-2
ETL CE Rohs 19.5'' 2835 China led module board string lighting LED lamp module LED PCB board for LED grow light
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-19.5-XX-40-2 Product name: LED lamp module
Shape: Linear LED Types: 2835 SMD LED
Voltage: Max 28.5V Color: White
LED Chip: Seoul & Samsung Input Current: Max 600mA
Dimension: 495.3*15.24*1.6mm PCB Material: Aluminum, CEM-3
LED QTY: 40pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 17.7W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

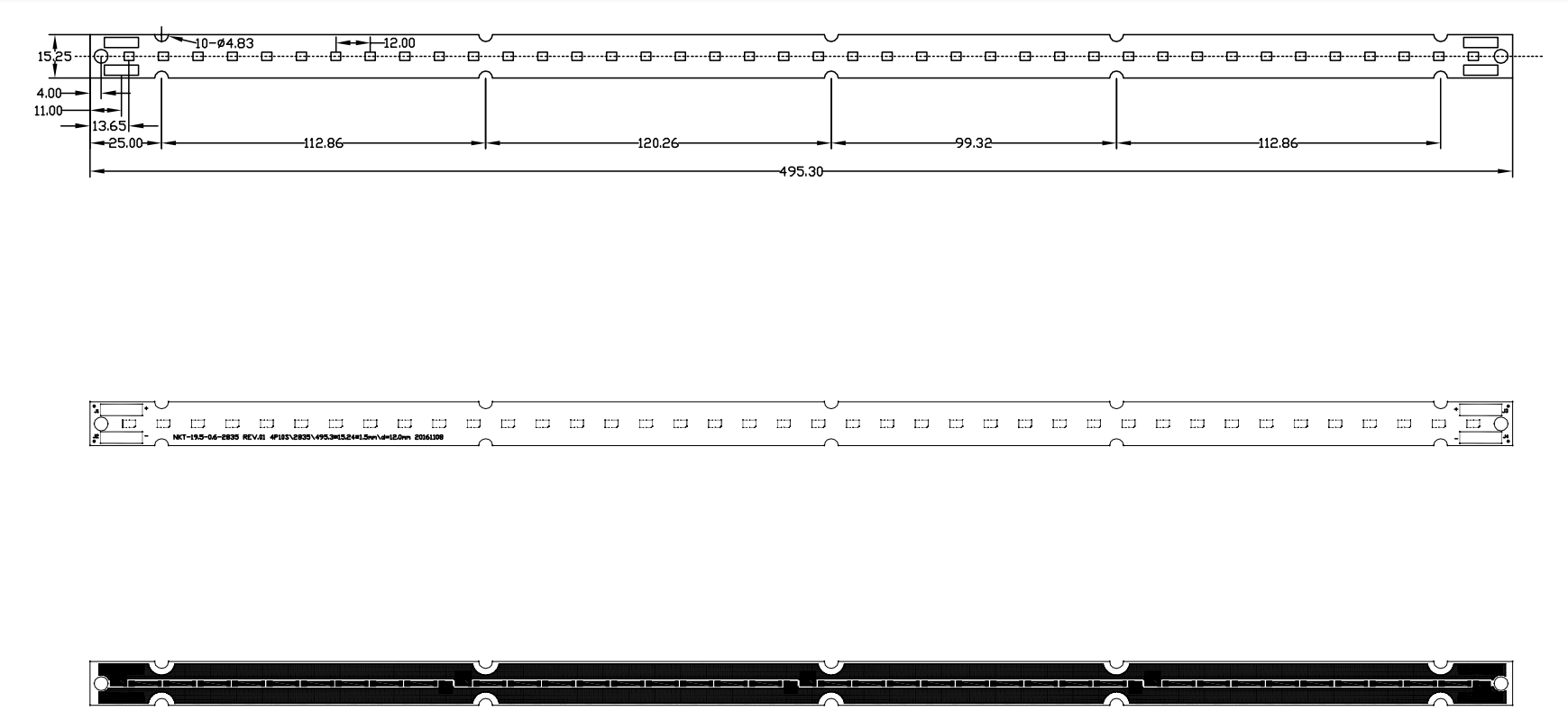

Product Dimension:

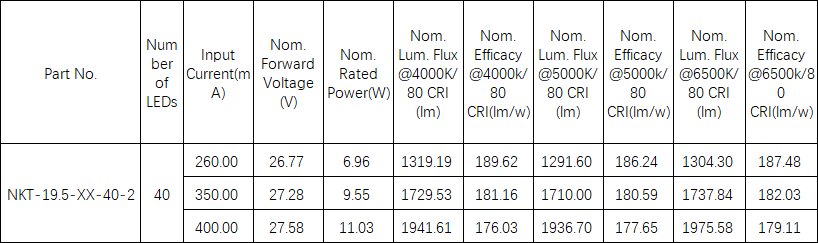

Technical Parameters:



Product packaging:


Product Applications:
